Waste Collection

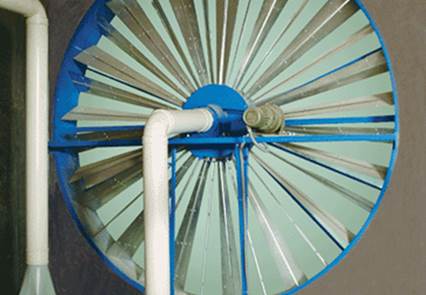

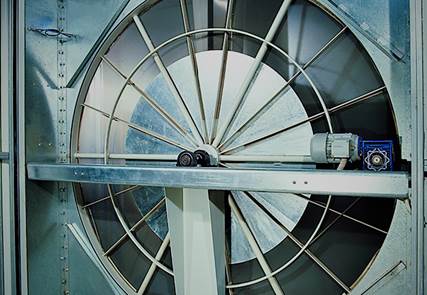

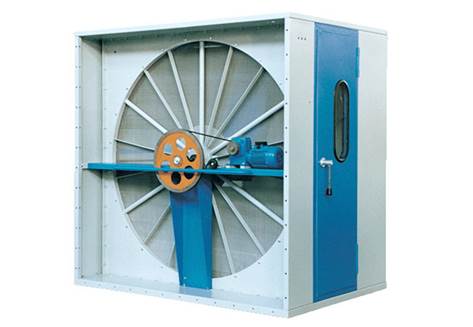

Rotary pre-filter unit (RPF) -Disk rotation



Rotating pre filter disk with suction device for continuous cleaning filter screen, gear motor and drive arrangement, completely assembled, sheet steel panel housing with the necessary inspection door and sight glass as well as special air inlet casing.



Specification 1520

Air volume: 12000-36000m3/h

Air volume of suction nozzle: 800-1600 m3/h

Pressure loss: 150-300pa



Specification 2128

Air volume: 25000-60000m3/h

Air volume of suction nozzle: 1500-2500 m3/h

 Pressure loss: 150-300pa



Rotary Pre Filter (RPF) is the first component in your two-stage filter system. The RPF can also be used as the single stage air filtration for room return air in production areas such as wool or man-made fibers, where no high amount of dust is generated. Its proven design has a small space requirement and a very low pressure drop. Pressure fluctuations within the air cleaning process are eliminated due to the continuous extraction of the disc-shaped filter.



Advantages:

Durable

Powerful

Space-saving



Applications:

Separation of textile waste, fibers

Pre-filtration for multi-stage filter systems

Suitable for all textile production processes, e.g. spinning, weaving, nonwovens

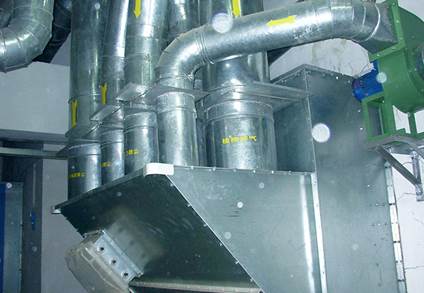

Fiber Separator FSB/C

Powder-coated sheet steel housing, electro-plated filter basket. Worm gear motor for shaft drive. Electrical control for continuous or intermittent operation.



FSB/FSC is a fiber separator that separates fibers from the waste suction system of the Fiber filtration system like the RPF. To make disposal easier, the fiber separator compresses the separated solids and feeds them to a secondary disposal system. The continuous cleaning of the air stream guarantees high solids throughput and at the same time avoids pressure fluctuations in the entire system. This enables continuous operation of the machines and processes to be cleaned.



Advantages:

Fiber separation and compacting Automatic, no pressure fluctuations



Applications:

Separation of textile waste in Blow room/Carding/Combing

Automatic disposal of waste from Spinning and Winding Edge trim suction in nonwoven lines



Specification FSB

Air volume: 1200-4000m3/h

Waste: about 125 kg/h

Pressure loss: about 400pa

Specification FSC

Air volume: 4000-8000m3/h

Waste: about 200 kg/h

Pressure loss: about 400paSmaller sizes can be customized

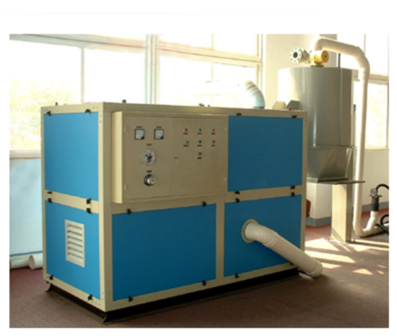

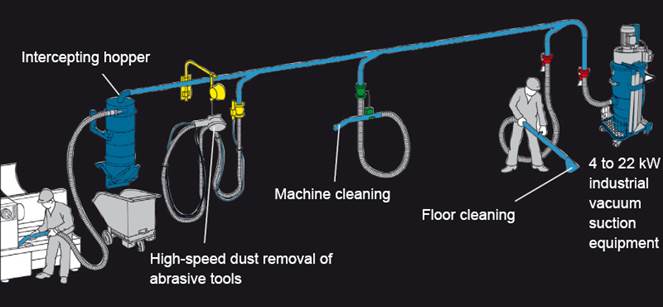

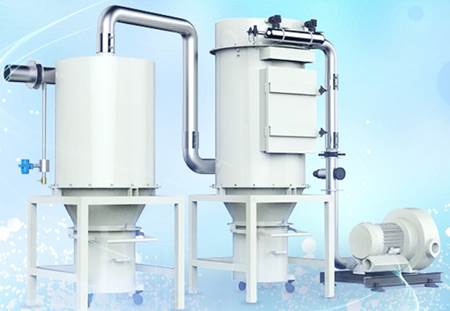

Central Vacuum System

The system is composed of main box, dust filtering bucket, dust collecting bucket, dust collection pipe network, etc. Adopt high-pressure Roots fan, with suction pressure of 20000-30000 pa

Automatic constant pressure device

The pipe network can be arranged above the ceiling or in the trench, and the length of the pipe can be up to 100 meters Suitable for high speed Shuttle Less Loom factory.
