Product


LDF- Rotary air filter

RPF- Rotary pre-filter unit

Dust Collector

Dust Collector fan

Air control damper &weather protection louver

Axial flow fan-10 blades

Fiber separator

FSB/FSC

Waste separator

WSA/WAB

Air washer –high speed/masonry

Water rotary filter WDF

Pump

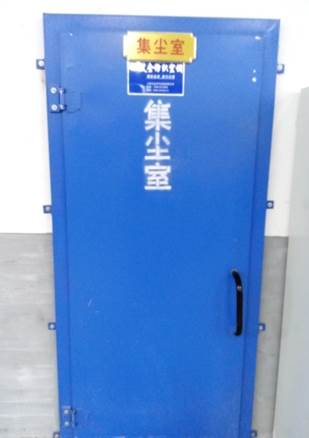

Engineering door

Air outlet, floor grill, floor slot, baffle plate

Local displacement flow outlet- weave direct system

Inverter

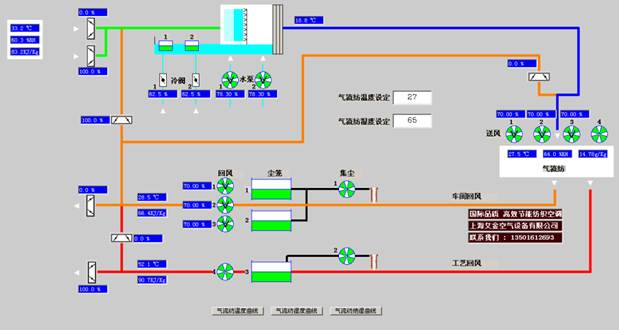

Automatic control system

Electrical Switchboard

The other equipment

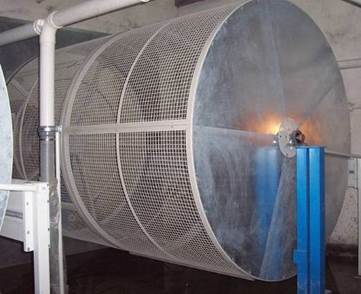

Rotary air filter（LDF）

Rotating perforated sheet steel drum mounted on steel frame.

Filter medium.

Suction nozzles with flexible suction hose. Drive mechanism with geared motor and suction nozzle adjustment, dust‑protected.

Electric motor.

LDF-20/17

20/17

Including filter

LDF-20/34

20/34

LDF-20/51

20/51

LDF-25/17

25/17

LDF-25/34

25/34

LDF-25/51

25/51

LDF-30/17

30/17

LDF-30/34

30/34

LDF-30/51

30/51

Article-No.

Specification

Remark

Rotary air filter（LDF）-List of spare parts

Item

Name

Article-No.

Specification

Price


1.1

Gear motor

0104.2301

Gear box

0104.2401

MS71 0.37KW

Motor

0104.2501

NMRV50 40/1

1.2

Filter media acrylic plush 5mm

22057

D=2000/ L=6400

22058

D=2500/ L=8000

22059

D=3000/ L=9600

Filter media acrylic plush 10mm

22060

D=2000/ L=6400

22061

D=2500/ L=8000

22062

D=3000/ L=9600

1.3

Switch in casing

0580.4801

1.4

Sealing tape

0068.5402

L=6260 B=80

0068.5403

L=7820 B=80

0068.5404

L=9380 B=80

1.5

Pedestal bearing

1225.8701

D60 /UCP212

1.6

Lock cpl.

1247.6901

1.7

SS Belt

1247.6802

L=6400/D=2000

1247.6803

L=7900/D=2500

1247.6808

L=9500/D=3000

1.8

Nap tape

1291.0702

L=1570

1.9

Cover for filter screen

1212.0102

For additional fixing of filter media

1.10

Rail

1290.4001

1.11

Screw

0002.8862

1.12

Truss head machine screw

0002.6480

1.13

Sealing tape 2x12-PVC

0003.3570

Rotary air filter（LDF）-List of spare parts

Item

Name

Article-No.

Specification

Price


2.1

Suction nozzle

0001.2901

2.2

Clip

21990

D=100

2.3

Vibration element with threaded

21991

M8

2.4

Roll cpl.

1266.6001

2.5

Spiral hose

0120.0506

D102/L=100mm

2.6

Spiral hose

0078.1701

D102/L=2500mm

2.7

Collar

1290.2001

D100

2.8

Hose clip

1265.1602

Rotary air filter（LDF）-List of spare parts

Item

Name

Article-No.

Specification

Price


3.1

Glider

1261.2201

3.2

Flat belt

0008.1084

5050x24x3.2

Flat belt

0008.1085

6260x24x3.2

Flat belt

0008.1086

7265x24x3.2

3.3

V-belt  V

0008.3822

10x6x2880

V-belt  V

0008.3823

10x6x3370

V-belt  V

0008.3824

10x6x3960

3.4

Roll with groove cpl. V

1265.9501

3.5

Angle gear

1264.9201

1:1

3.6

Chain wheel cpl.

1217.6602

3.7

Returning cpl.

1266.9201

3.8

Roll cpl.

0120.0614

D110x45

3.9

Traveller cpl.

0126.0801

3.10

Roller chain

0004.1713

L=3010

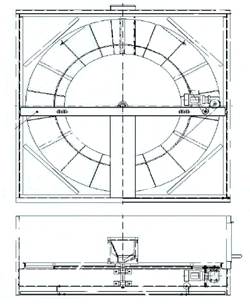

Rotary pre-filter unit（RPF）

Rotating pre filter disk with suction device for continuous cleaning filter screen, gear motor and drive arrangement, completely assembled, sheet steel panel housing with the necessary inspection door and sight glass as well as special air inlet casing.

Article-No.

Specification

Remark

RPF-1520

Φ=1520

RPF-2128

Φ=2128

RPF-2300

Φ=2300

Rotary pre-filter unit（RPF）-List of spare parts

Item

Name

Article-No.

Specification

Price


1.1

Gear motor

0104.2307

0.55kw&40:1

1.2

Motor

1.25853

0.55kw/2 poles

2.1

Worm gear

0104.2401

40:1

Shaft

26744

D25

Parallel key

0005.0085N

8x7x40

Parallel key

26748

8x7x80

Disk

26751

D40

Socket button head cap screw

0008.3627N

M10x25

3.1

Pulley

0104.2601E

D130

3.2

Tension roller

0081.1001L

D65

3.3

Pedestal Bearing

1225.9001

D40/UCP208

3.4

Filter screen by nylon

1520

0073.9201

60 meshes/250

Filter screen by nylon 1520

0073.9202

80 meshes/180

Filter screen by nylon

1520

0073.9203

100 meshes/150

Filter screen by nylon

1520

0073.9204

120 meshes/120

Filter screen by nylon

2128

0073.9205

60 meshes/250

Filter screen by nylon

2128

0073.9206

80 meshes/180

Filter screen by nylon

2128

0073.9207

100 meshes/150

Filter screen by nylon

2128

0073.9208

120 meshes/120

Filter screen by nylon

2500

0073.9209

60 meshes/250

Filter screen by nylon

2500

0073.9210

80 meshes/180

Filter screen by nylon

2500

0073.9211

100 meshes/150

Filter screen by nylon

2500

0073.9212

120 meshes/120

3.5

Filter screen by SS

1520

0098.6803

60 meshes/250

Filter screen by SS

2128

0098.6804

60 meshes/250

Filter screen by SS

2500

0098.6805

60 meshes/250

3.6

Ring segment

0098.7101E

1520-3pcs/ring

Ring segment

0098.7102E

2128-4pcs/ring

3.7

String

0120.9337

D1520

0120.9338

D2128

4.1

Flat belt -1520

0087.9901

L=3140mm

Flat belt -2128

0087.9902

L=4970mm

4.2

Sealing tape -1520

0008.4336

1x80x4420

Sealing tape -2128

0008.4250

1x80x6300

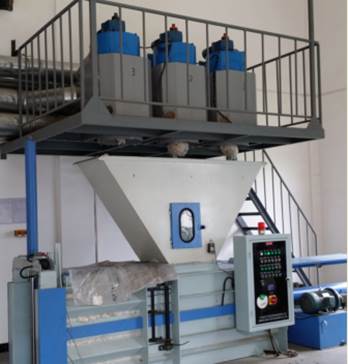

Dust Collector

Article-No.

Specification

Price

Remark

0089.9501

2 bags

With filter hose/waste disposal bag/connection piece

0089.9502

4 bags

0089.9503

6 bags

Dust Collector-two bags-List of spare parts

Item

Name

Article-No.

Specification

Price


1

Filter –short

1232.8501A

L=1600mm

Filter –long

0090.5601A

L=2400mm

2

Plastic bag

1233.0701A

3

Clamp

1210.1304A

D=475mm

4

Clip

0007.5917A

D=468mm

5

U-pipe for differential pressure indicator  U

1230.0402A

6

Double socket support cpl.

0090.3301A

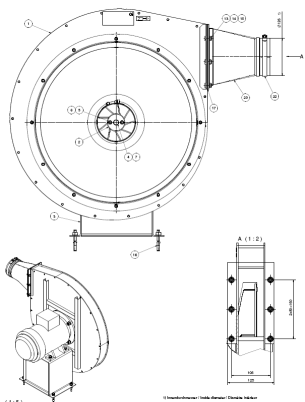

Dust Collector fan

Suction fan made of sheet steel with balanced impeller and electric motor.

Article-No.

Specification

Price

Remark

0089.9001A

Dust Collector fan--List of spare parts

Item

Name

Article-No.

Specification

Price


1

Wheel

0085.0701A

D=550mm/50Hz

2

Motor

0008.4839A

4.0kw/2P

3

Housing cpl.

0083.0401A

4

Clamp

0003.8394A

D=130mm

5

Transition piece cpl.

1261.7702A

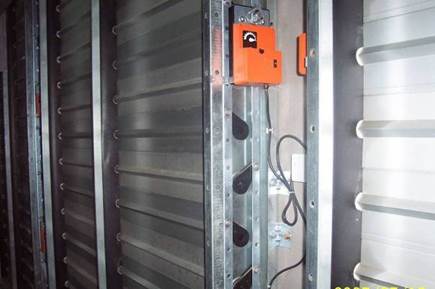

Air control damper &weather protection louver

Reinforced aluminium damper blades, frame of galvanized steel. Damper shafts set in plastic bushes. Damper linkage for opposed blade action. Lateral sealing elements for reduction of air leakage.

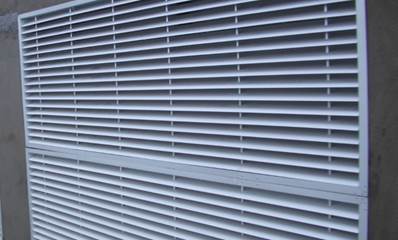

Frame and rain louvers with drip-proof edge, made of aluminum.

Article-No.

Specification

Price   $

Remark

Damper

WXH

standard size

W=456+152xN

H=456+152xN

N_max.=16

We also provide nonstandard sizes according to the requirements of the orders.

Louver

WXH

standard size

W=456+152xN

H=456+152xN

N_max.=16

Air control damper - Main spare parts

调节风阀-主要备件清单

Item

Name

Article-No.

Specification

Price


1

Servo motor

0008.4201A

40Nm /Belimo

2

Damper lever cpl.

0045.0101A

3

Bearing stud

1245.3201A

4

Connecting piece

0045.0001A

5

Fixing ring

0002.9207A

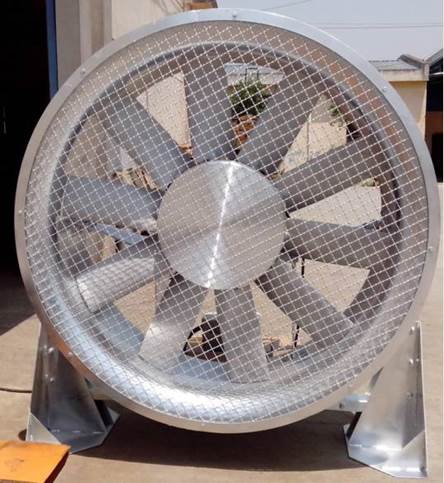

Axial flow fan-10 blades

Fan housing with inlet bell and motor support of galvanized steel. Axial flow fan impeller of light metal casting. Statically and dynamically balanced. Blade pitch adjustable on stationary impeller.

Electric Motor-A.C. induction motor, totally enclosed type to IEC‑Standard, IP 55, type of construction B3, insulation classification F, with terminal box.

Diffusor for Fan -Diffusor with connection flanges made of galvanized sheet steel.

Protection Grille for Fan -Wire screen mounted in frame made of galvanized steel.

Article-No.

Specification

Price

Remark

D=1120mm

Including housing, impeller, protection grille

(wall mounting)

D=1600mm

D=1250mm

D=1400mm

D=1800mm

Axial flow fan - Main spare parts

Item

Name

Article-No.

Specification

Price


1

Fan housing

0077.9404A

D=1120mm

2

0077.9407A

D=1600mm

3

Impeller

(Incl. hub, blade, cover, adjust sheet, clamp bracket etc.)

0081.1102A

D=1120mm

4

0081.1108A

D=1600mm

5

protection grille

1348.8104A

D=1120mm

6

1348.8107A

D=1600mm

7

Diffuser

0102.3404A

D=1120mm short

8

0102.3407A

D=1600mm short

9

Motor bushings

0081.4801A

D=24

10

0081.4802A

D=28

11

0081.4401A

D=38

12

0081.4402A

D=42

13

0081.4403A

D=48

14

0081.4404A

D=55

15

0081.4405A

D=60

16

0081.4406A

D=65

17

Motor

(Siemens-made in China)

1297.0001A

7.5kw/4p

18

1297.0002A

11kw/4p

19

1297.0003A

15kw/4p

20

1297.0004A

18.5kw/4p

21

1297.0005A

15kw/6p

22

1297.0006A

18.5kw/6p

23

1297.0007A

22kw/6p

23

1297.0008A

30kw/6p

25

1297.0009A

37kw/6p

26

Blade

0080.2501A

D=1120

27

0063.7301A

D=1600

28

Axial fan support(ground-mounted installation, framework mounting)

D=1120

29

D=1600

30

Hub cover

(incl. hood, cover ring, spring clamp)

1232.6909

D450X90

31

1218.6402

D630X90

32

Diffuser

0102.3404

D=1120

33

0102.3407

D=1600

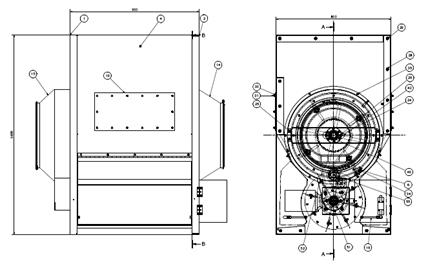

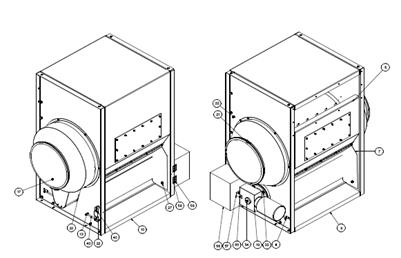

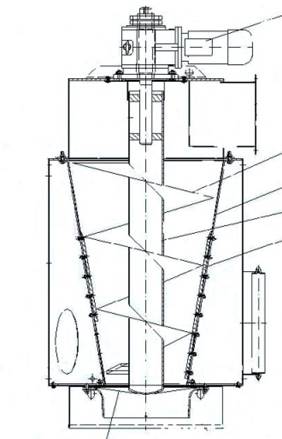

Fiber separator

Powder-coated sheet steel housing, electro-plated filter basket. Worm gear motor for shaft drive. Electrical control for continuous or intermittent operation. Mounting frame for wall installation.

Article-No.

Specification

Price

Remark

0072.6705

FSB

Including case, net, worm, motor etc.

0067.6104

FSC

Fiber separator - Main spare parts

Item

Name

Article-No.

Specification

Price


1

Lower case 下壳体

0072.6901

FSB

2

0067.6701

FSC

3

Upper case 上壳体

0110.8501

FSB

4

0110.9400

FSC

5

Separating net 分离网

0073.2701

FSB

6

0067.6301

FSC

7

Worm comp.涡轮组件

0073.4302

FSB

8

0068.4802

FSC

9

Felt 毛毡

0072.4101

35x5,L=2100

10

Copper strip 铜条

0111.2202

FSB L=283

11

0111.2201

FSB L=463

12

0111.2302

FSC L=443

13

0111.2301

FSC L=683

14

Gear motor

0120.0305

FSB/50HZ/0.37kw

15

Gear motor

0112.1201

FSC/50HZ/0.37kw

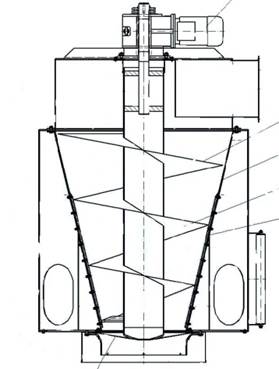

Waste separator

废物分离器

Casing components in wet-lacquered steel plate. Worm gear motor and chain transmission. Cam control of rakes. Solid filter drum hub in cast steel. Filter screen in wear-resistant metallic woven fabric. Access hatch in safety glass. Control unit in dust-tight metal casing. Four limit switches. Bucket wheel with rubber lips. Digital differential pressure guard. Friction clutch.

Article-No.

Specification

Price

Remark

0120.9033

WSA

Including case, net, worm, motor etc.

0120.9400

WSB

Waste separator - Main spare parts

废物分离器-主要备件清单

Item

Name

Article-No.

Specification

Price


1

Mix rod 搅拌棒

0120.9147

WSA

2

0120.9510

WSB

3

Drive filter bucket (copper net) 过滤铜网

0120.9154

WSA

4

0120.9506

WSB

5

Teflon plate 特氟龙板

0120.9157

WSA

6

0120.9507

WSB

7

Felt gasket 羊毛毡

0120.9144

WSA

8

0120.9528

WSB

9

Guide rail 左右导轨

0120.9165

WSA

10

Guide rail 左右导轨

0120.9511

WSB

11

Gear motor 减速电机

0120.0305

WSA /50HZ/0.37kw

12

Gear motor 减速电机

0112.1201

WSB /50HZ/0.37kw

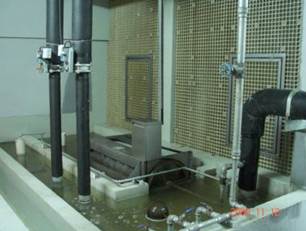

Air washer –high speed/masonry

喷水室-土建结构

Air straightener of polystyrol screen elements with incorporated inspection and maintenance door. Nozzle bank consisting of vertical plastic pipes which are held on the corrosion‑resistant header by means of patented couplings. Removable plastic spray nozzles with screw cap, fixed on the vertical plastic pipe by a quick‑release clip. Necessary frames and supports in stainless steel. Float valve of corrosion‑resistant material. Overflow in plastic. Drain‑cone in stainless steel.

Article-No.

Height

mm

Width

mm

Price

Remark

0015.6311

H=1976mm

1520

Including

1 flow straightener

2 drop eliminator-ABS

3 spray pipe

4 sump cpl. (only for h=2940 )

5 distributor

6 over flow

7 float valve

0015.6312

1824

0015.6313

2128

0015.6314

2432

0015.6315

2736

0015.6316

H=2940mm

1520

0015.6317

1824

0015.6318

2128

0015.6319

2432

0015.6320

2736

Air washer - Main spare parts

喷水室-主要备件清单

Item

Name

Article-No.

Specification

Price

Photo/Remark

1

Drop eliminator

H=1976

0017.1411

W=1520

2

0017.1412

W=1824

3

0017.1413

W=2128

4

0017.1414

W=2432

5

0017.1415

W=2736

6

Drop eliminator

H=2940

twin eliminator & ss sump

0066.1201

W=1520

7

0066.1202

W=1824

8

0066.1203

W=2128

9

0066.1204

W=2432

10

0066.1205

W=2736

11

Eliminator pack end

1209.4406

L=2088

12

Eliminator pack comp.

0017.0003

L=2088

Incl. distance piece/ss tap/thread rod/14 separate lamellas

13

Eliminator/separate lamella

1232.7103

L=2088

14

Sump

W=1520

15

W=1824

16

W=2128

17

W=2432

18

W=2736

19

Eliminator/separate lamella

1232.7101

L=1480

20

Air straightener

H=1976

0016.6311

W=1520

21

0016.6312

W=1824

22

0016.6313

W=2128

23

0016.6314

W=2432

24

0016.6315

W=2736

25

Air straightener

H=2940

0016.6316

W=1520

26

0016.6317

W=1824

27

0016.6318

W=2128

28

0016.6319

W=2432

29

0016.6320

W=2736

30

Raster

1202.3701

606x303

31

Checking door frame

1256.1301

32

Checking door

1256.1401

33

Flat clamp

1256.2601

34

Convex clamp

1256.2701

35

Spray bank

H=1976

0016.7641

W=1520

36

0016.7642

W=1824

37

0016.7643

W=2128

38

0016.7644

W=2432

39

0016.7645

W=2736

40

Spray bank

H=2940

0016.7656

W=1520

41

0016.7657

W=1824

42

0016.7658

W=2128

43

0016.7659

W=2432

44

0016.7660

W=2736

45

Spray nozzle

0020.2401

D=6mm

46

SS clip for spray nozzle

1280.1101

D=40

47

Base sealing ring for spray pipe

1320.8301

48

SS clip for spray pipe

1300.0101

3x225

49

Spray pipe cpl.

0020.6203

L=1958

Incl. spray plastic pipe, pipe cap, pipe base, sealing ring, pipe support ring.

50

Spray pipe cpl

0020.6206

L=2870

51

Distribute pipe for spry

1201.4002

L=1322 /5 holes

52

1201.4003

L=1626/6 holes

53

1201.4004

L=1930/7 holes

54

1201.4005

L=2234/8 holes

55

1201.4006

L=2538/9 holes

Air washer room accesories- spare parts

喷水室其他备件清单

Item

Name

Article-No.

Specification

Price


1

Suction pipe for circulated water

1123.8701

DN80

2

1123.8702

DN100

3

1123.8703

DN125

4

1123.8704

DN150

5

1123.8705

DN200

6

Suction pipe for cold water connection with slot

1207.0301

DN80

7

1207.0302

DN100

8

1207.0303

DN125

9

1207.0304

DN150

10

1207.0305

DN200

11

Static water filter

1267.1501

W=456

W=456Xn

(N=1-10)

12

Over flow pipe

1200.1201

Incl. base, pipe, rubber circle, handle

13

Flow valve

0005.1276

14

Distributor piece-F type F

1264.8601

Distance=350

15

Throttle damper ( dedicated plastic valve for adjust cold water)

0021.6103

DN80

16

0021.6104

DN100

17

0021.6105

DN125

18

0021.6106

DN150

Water rotary filter WDF

Sheet metal housing of corrosion‑protected material, mesh wire cylinder, dismountable filter fabric, and backwash spray, drive mechanism and electric motor. Casing of stainless material.

Article-No.

Specification

Price

Remark

1205.5501

Operation left side

1205.5502

Operation right side

Water rotary filter WDF - Main spare parts

旋转水过滤器-主要备件清单

Item

Name

Article-No.

Specification

Price


1

Gear motor

0079.4201

120W

2

Belt pulley

0067.6701

D=150

3

Tension roll

1217.7001

4

Sleeve for WDF

1217.6901

5

V belt

1249.0401

10x2070

6

Rubber ring

1220.1701

511x2x90

7

Pipe clamp

1220.1801

519-528

8

Filter net

1220.1601

970x1600

9

Lock plate

1210.0601

10

Hook

1230.3801

11

Lock

1230.4001

12

Injection pipe

1219.9401

13

Bracket for WDF

1231.3501

14

Dirt pan

1220.0801

15

Rubber tape for dirt pan

1220.1201

16

Inspection cover

0008.3712

D=150

Pump

Single stage horizontal centrifugal pump

Shanghai KaiQuan pump-the top brand in China.

Article-No.

Specification

Price

The matching air washer size

examples

KQW150-315

KQW150-315/30KW-4
220-250m³/h  H=25-27m

2x2432 x2940

KQW150-300

KQW150-300/22KW-4
180-220m³/h

H=25-27m

2x2736x1976

2x1824x2940

2x2128 x2940

KQW125-160

KQW125-160/22KW-2
180-190m³/h

H=25-27m

2x2432x1976

2x1824x2940

KQW125-150

KQW125-150/18.5KW-2
150-175m³/h

H=25-27m

2x2128x1976

2736x2940

2x1520x2940

KQW125-140

KQW125-140/15KW-2
100-140m³/h

H=25-27m

2432x1976

2736x1976

2x1520x1976

2x1824x1976

1824x2940

2128 x2940

2432 x2940

KQW100-150

KQW100-150/11KW-2
40-80m³/h

H=25-27m

1520x1976

1824x1976

2128x1976

1520x2940

Engineering door

Airtight execution. Door constructed in double metal sheeting, galvanized, with two lever fastener, tubular sealing and hot‑galvanized frame.

Article-No.

Specification

Price

Remark

1066.6601

2000x760

Standard door

1066.6602

2000x760

Stainless steel door

1066.6603

2000x760

With Pressure relief hole-for dust filter room

1066.6604

2128x608

Inspection door For RPF/AHU with sight glass

Air outlet, floor grill, floor slot, baffle plate

Article-No.

Specification

Price

Remark

Based on drawing

Air outlets

Duct connection stud with integrated adjustable air guide vane element of either galvanized or plastic-coated sheet steel.

Common size:

625x225xh

825x225xh

1025x225xh

1025x325xh

Based on drawing

Floor grill

Grid made of profile steel, hot dip galvanized. Heavy gauge steel construction. Mounting frame.

Common size:

400x400

300x300

Based on drawing

Floor slots

Heavy gauge steel construction frame, hot dip galvanized.

Common size:

800x22

1000x22

0064.5601

Baffle plate W=225,L=2500

Steel sheet elements, with spacer and integrated four-fold blowing plates of steel for low-induction air introduction, made of galvanized sheet steel.

0064.5602

Baffle plate W=325, L=2500

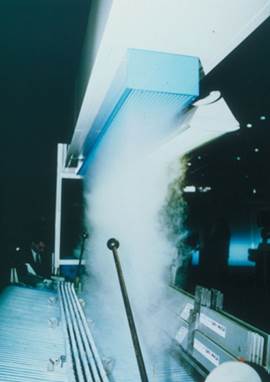

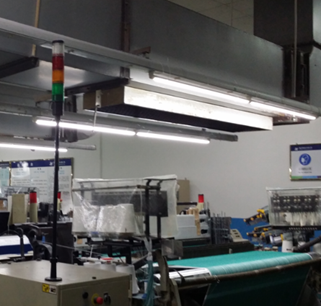

Local displacement flow outlet- weave direct system

Air Diffuser (weaving Outlet) for Weaving Machine (Supply Duct), made from Galvanized steel Sheet, Multiple Air adjustment flaps and Air Reflector. Foam Filter and mesh, Air Flow Open / Close Control External Lever, Painted, Supplied with Mounting Accessories.

Article-No.

Specification

Unit Price FOB Shanghai (USD)

Remark

FKM1-1300 to

FKM1-2500

W=222

L=1300,1400,1500,1600,1700,1800,1900,2000

2100,2200,2300,2400.2500

FKM2-1300 to

FKM2-2500

W=302

L=1300,1400,1500,1600,1700,1800,1900,2000

2100,2200,2300,2400.2500

FKM3-1300 to

FKM3-2500

W=402

L=1300,1400,1500,1600,1700,1800,1900,2000

2100,2200,2300,2400.2500

Inverter

For fan and pump

YASKAWA E1000

Article-No.

Specification

Unit Price FOB Shanghai (USD)

Remark

YE1000-7.5

7.5kw

YE1000-11

11kw

YE1000-15

15kw

YE1000-18.5

18.5kw

YE1000-22

22kw

YE1000-30

30kw

YE1000-37

37kw

Automatic control system

Automatic control system
TexAuto: an automatic control system for textile air-conditioner- the most advanced system in China
TexView: a supervisory control software

   Its core controller adapts German Beckhoff CX9000 embedded PC, which has powerful computing capability, large capacity memory, and a compact form. Cooperating with the new Ethercat bussing technique, it realizes remote control on several air-conditioning chambers, which cuts down the cost on controller and bus effectively.

Taking their years of experience as a support, experts elaborate on the control strategy, which ensures the controller to calculate the external air enthalpy, workshop return air enthalpy, benchmark dew point and enthalpy of benchmark dew point, according to external temperature, workshop return air temperature and humidity, and the set value. The controller compares and then chooses proper models from free cooling, free cooling & mechanical cooling, and mechanical cooling, which saves energy to the maximum limit. The controller adapts cascade control PID algorithm to control the dew point temperature at the outlet of the spray chamber, ensuring the stable control on the temperature in workshops. The controller uses PID relay algorithm to adjust spray outlet air valve/the opening of secondary return air valve, and the speed of the spray pump to control the humidity of workshops, all of which hit a high degree of accuracy.

TexView, professional supervisory control software specialized for textile air-conditioner, is able to flexibly install in one or more PCs taking Windows as operating system, and then connects by normal Ethernet to Controller CX9000. The air conditioning process will be visible, and the real-time parameters, historical data, reports, trends, and alarm records are available to be printed and on setting/operating man-machine interface for various user levels respectively.

Article-No.

Specification

Unit Price FOB Shanghai (USD)


Based on drawing

Total cost of one control system

 For example:

1 air conditioning room

Supply air volume:200000m³/h LDF filter

PLC Controller

CX9010

Ethercat Master

EK1110

Ethercat Slave

BK1120

4 Channel  AI Card

KL3054

4 Channel Rtd Card

KL3204

8 Channel AO Card

KL4408

16 Channel DI Card

KM1002

16 Channel DO Card

KM2002

Bus End

KL9010

HTT

EE23-PFTA3D03/AB6-T24-M12

E+E

Dew point Pt1000

TE-6328P-1

Pt1000

Damper motor

GMU24-SR-Belimo (Swiss)

Electrical Switchboard

- With main interrupter

-With collective failure indication

-Powder coated steel sheet housing in 1.5mm Steel sheet

-Main and control switches and signal set into front door.

-Module panels with built‑in protective motor switch, inlet and outlet terminals, including protected internal wiring.

-With DDC control.

-Quality are comparable to Rittal of Germany

Article-No.

Specification

Unit Price FOB Shanghai (USD)


Based on drawing

Schneider &ABB  components
