Fan

Axial Flow Fan





Fan Unit:

 for supply air

- for extract air

Fan housing with inlet bell and motor support of galvanized steel. Axial flow fan impeller of light metal casting. Statically and dynamically balanced. Blade pitch adjustable on stationary impeller.

Electric Motor:

A.C. induction motor, totally enclosed type to IEC Standard, IP 55, type of construction B3, insulation classification F, with terminal box.



Diffusor for Fan:

Diffusor with connection flanges made of galvanized sheet steel.



Protection Grille for Fan:

Wire screen mounted in frame made of galvanized steel.

Advantages:

Higher efficiency - lower power consumption

Aerodynamic aluminum blades

Corrosion free design

Higher fan capacity

Wide range of configurations for best fitting operation point

Sturdy industrial design

Reduced noise level

Adjustable blade pitch angles

Fan specification:

Diameter in mm

900/1120/1250/1400/1600/1800/2000











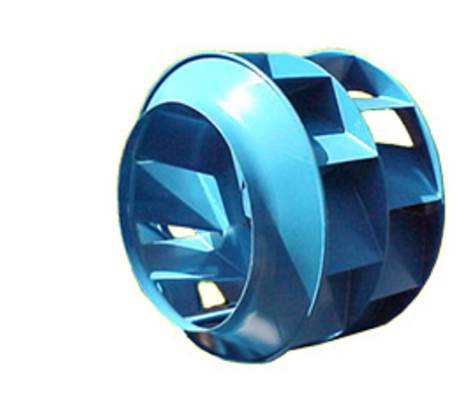

Radial Flow Fan

For main air stream

Sheet steel housing, balanced impeller. Fan with belt drive, drive guard. Metal base frame with motor tightening device. Fan protected against corrosion.



- Electric Motor

AC induction motor, totally enclosed type to IEC Standard, IP 55, type of construction B3, insulation classification F, with terminal box.



AIRKING centrifugal fans are suitable for all industrial applications. Compared to AIRKING's Axial Flow Fan, the Radial Flow Fan offers higher conveying pressure ratios at a slightly lower sound pressure level.



The different versions available are selected according to your application and requirements and integrated into the overall system supplied by AIRKING.



Advantages:

Energy efficiency

Wide volume flow range

Possibility of customizing the fans according to your requirements

Applications:

Suitable as supply air, exhaust air or process air fan in industrial applications

For increased demands on the sound pressure level







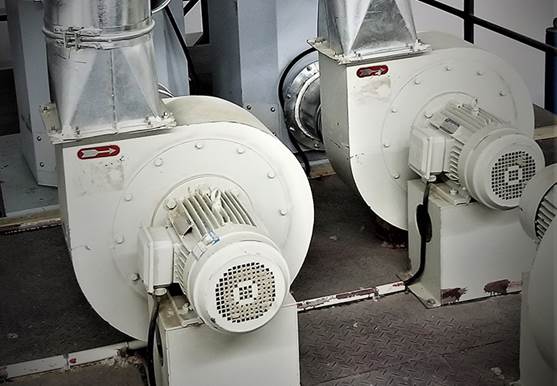

Material Handling Fan





Application:

LDF dust collector, fiber compactor dust collector, equipment intermittent dust collector and various transportation dust system.

Specifications: various specifications.

Features: special fan for textile, cotton fiber can not be wound with the blade, the fan is stable in use, simple in structure, easy to collect dust, fast and easy to maintain.

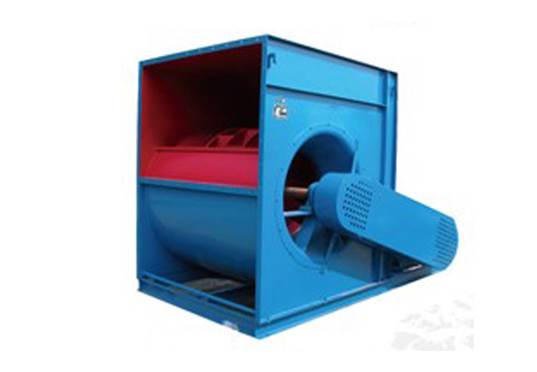

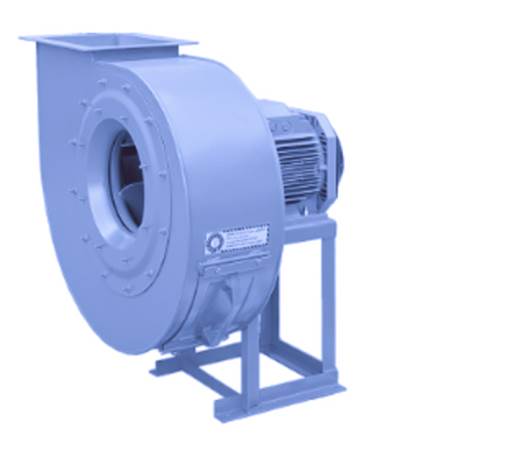

Impeller made of welded sheet steel, statically and dynamically balanced. Housing of sheet steel. Inlet and outlet side with flanges. Base frame for fan and motor. All steel parts painted. Impeller directly mounted on drive motor shaft, electric motor with textile protection hood.



Fan design

Open-type fan blade to satisfy the requirement of a fiber conveying fan.

Straight or slight backward curved blade, depending on the series.

Impeller directly fitted on the motor shaft, fixed with wedge 45deg rotatable housing. High efficiency - low power consumption.

Steel scroll casing, welded and powder-coated - with optional stainless-steel lining. Impeller in mild steel, welded and powder-coated.

Motor foot fastened on cantilever and fixed with screws and flange onto the housing.
