Multi-cylinder dust filtering unit

Function

Series SFU017 Multi-drum Dust-filtering Unit can widely be used in the air-conditioning and dedusting system of such light industrial enterprises as cotton spinning, chemical fiber, bastfiber spinning, papermaking, tobacco, etc. For collecting the fibre & dust in the dust air to purify air and to achieve the goal of recovery or discharge,

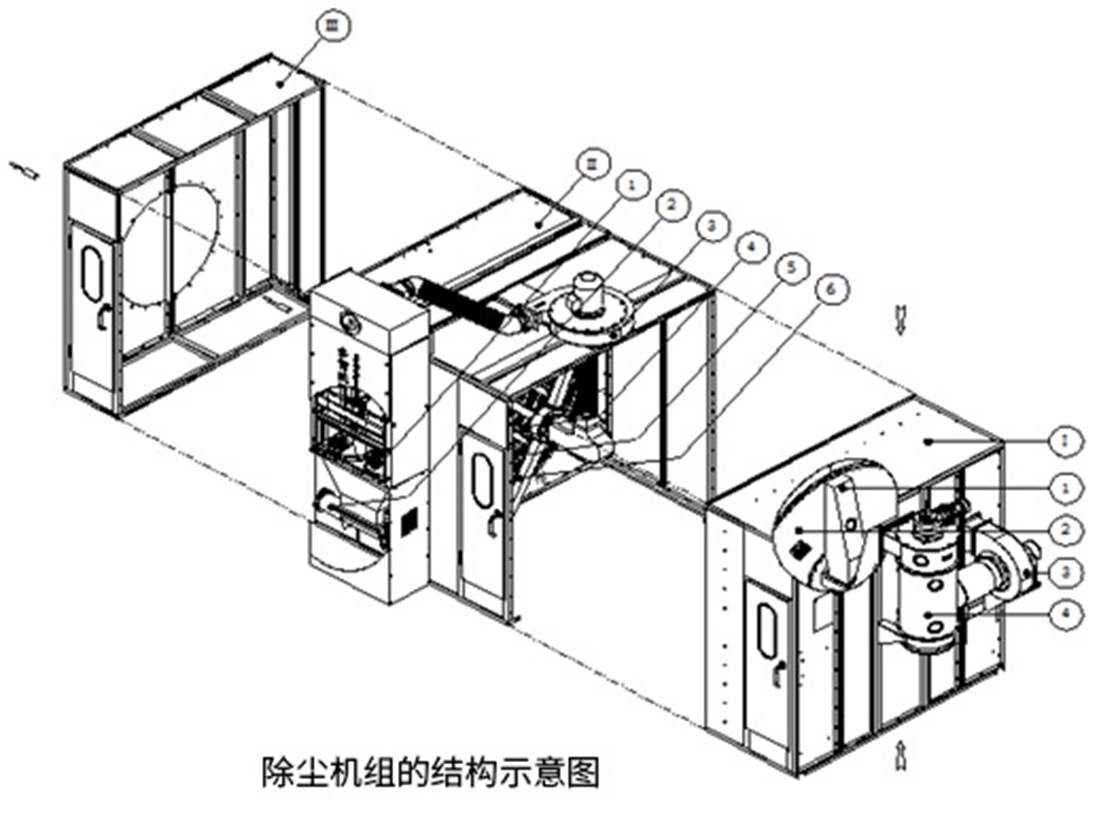

I. Disc pre-filter

1.Rotating nozzles

2.Disc filter screen

3.Dust-exhausting fan

4.Fiber compactor

­­­

II. Multi-drum filter

1. Fine-dust compressor

2.Bag collector

3.Dust-collecting fan

4.Multi-drum filtering grooves

5.Multi-drum nozzles

6. Rotating suction arms

III. Rear square cabinet

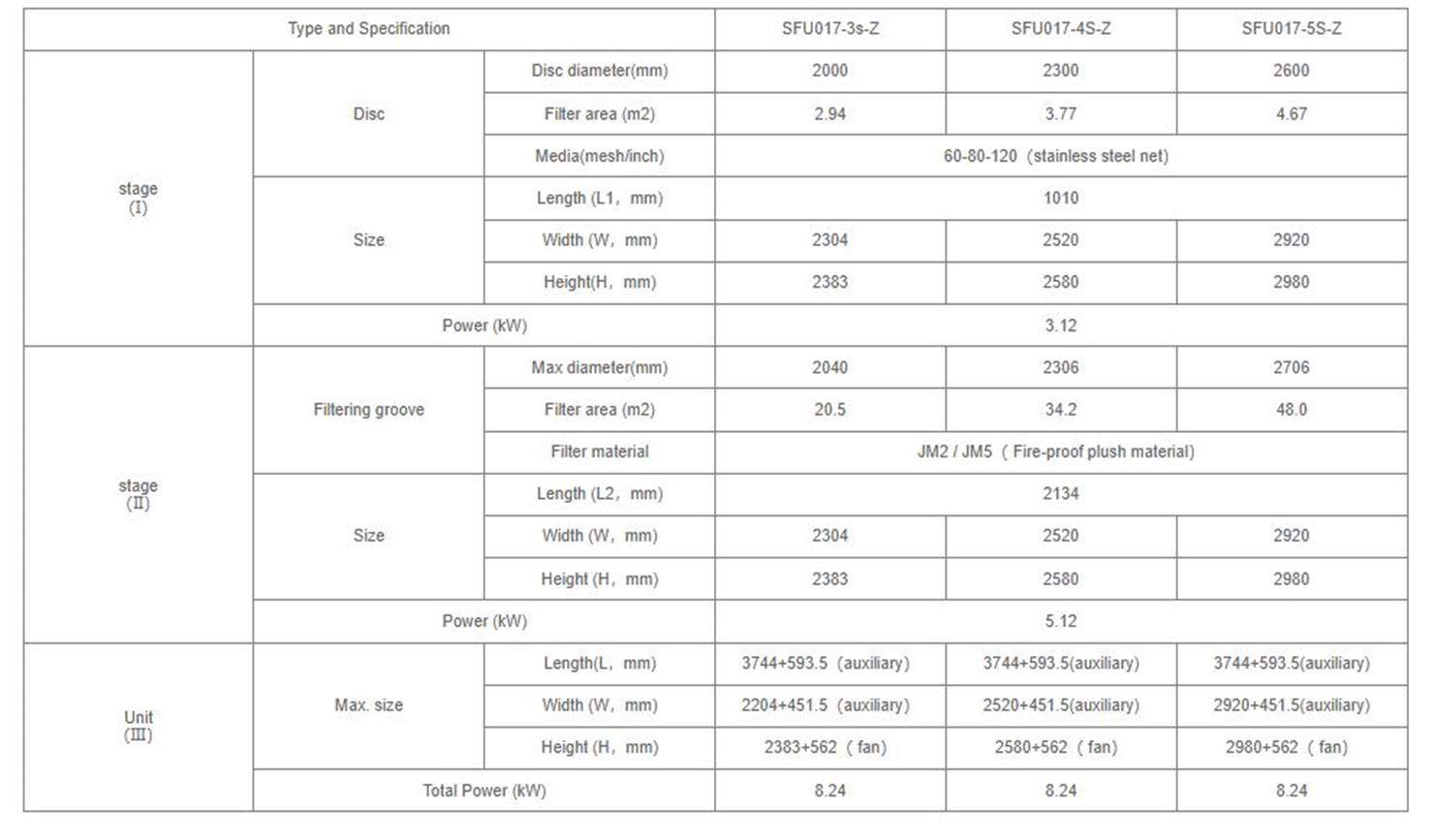

Specifications and Dimensions Table
