Fine Dust Collection

Rotary air filter





Product Description

Purpose: Relying on the return air fan for suction, the dusty air is filtered in the process of passing through the filter material and entering the rotating cage. The clean air enters the spray chamber from the open end and the matching suction nozzle sucks the dust on the surface of the filter material into the dust collector.



Specification:

Diameter 1.5m, 2m, 2.5m, 3m

Length 1.7m, 3.4m, 5.1m, 6.8m

Features: high filtration efficiency, simple structure, easy management and maintenance, safe and reliable to use.

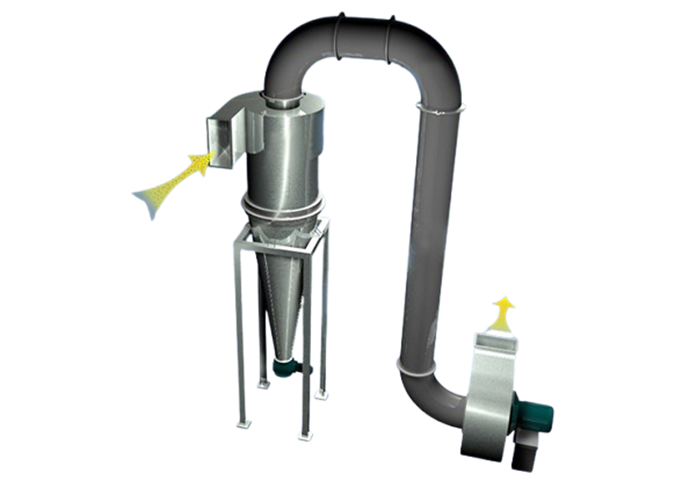

Cyclone dust collector







Product Description

The cyclone dust collector is composed of an air inlet pipe, an exhaust pipe, a cylinder, a cone and an ash hopper. The cyclone dust collector has a simple structure, is easy to manufacture, install and maintain, and has low equipment investment and operating costs. It has been widely used to separate solid and liquid particles from airflow, or to separate solid particles from liquid.

Under normal operating conditions, the centrifugal force acting on particles is 5 to 2500 times that of gravity, so the efficiency of cyclone dust collectors is significantly higher than that of gravity settling chambers. Among mechanical dust collectors, cyclone dust collectors are the most efficient. They are suitable for the removal of non-sticky and non-fibrous dust, mostly used to remove particles larger than 5μm. The parallel cyclone dust collector device also has a dust removal efficiency of 80-85% for particles of 3μm.

Usually used in conjunction with a dust compactor.

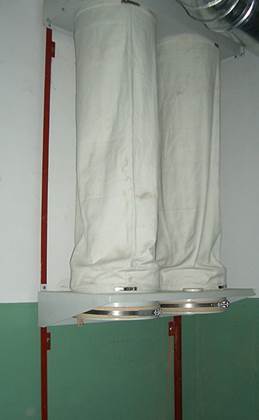

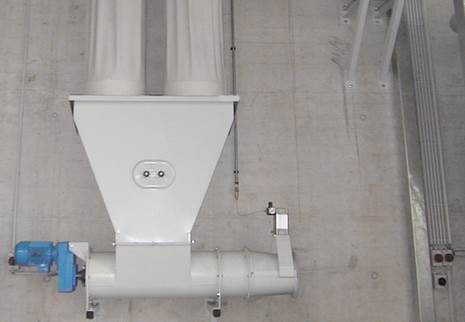

Dust Collector





Application:



Used together with the rotary cage dust filter, mainly used to collect dust. Specifications: 1200x3275; 2400x3275; 3600x3275

Features: simple structure, convenient and fast collection of impurities, small footprint.

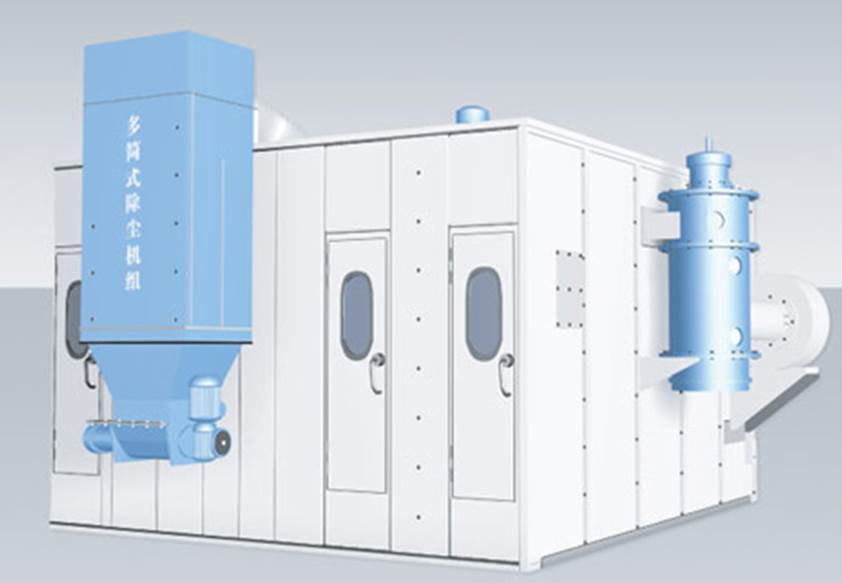

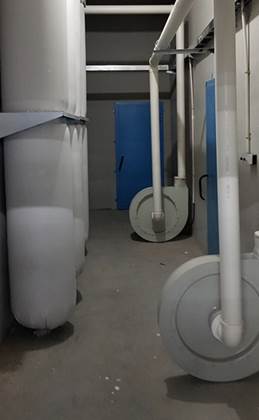

Multi Drum Removal unit



Product Description

Multi Drum Removal unit

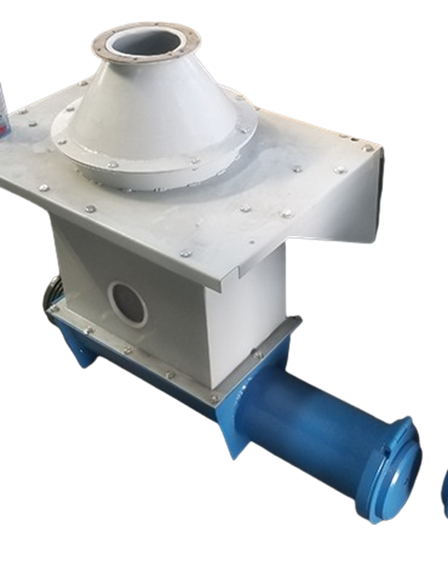

Dust Compactor

Use:

This equipment is mainly used in the dust filtration system of textile mills to separate and collect dust and short fibers in the air low and compress them into a denser state.



Processing capacity: 20 Kg/h

Installed power: 0.55 Kw

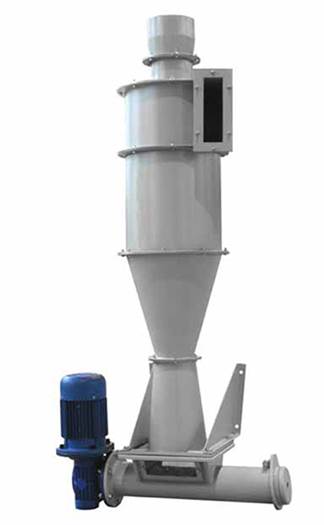

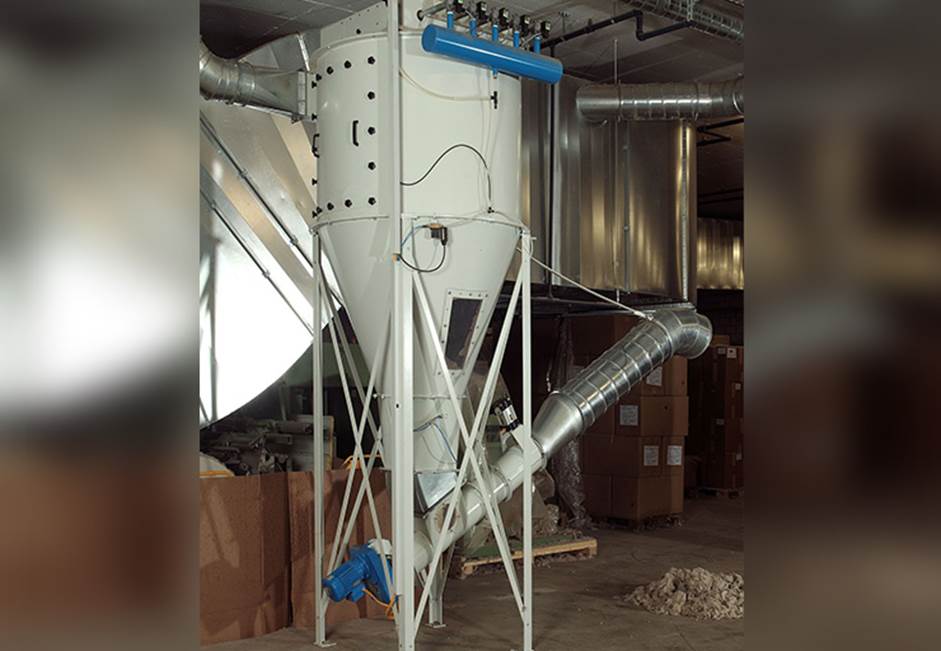

Dust separator



Product Description

Highly efficient dust separation equipment, using the principle of cyclone dust collector.

Air flow: 600-1800m3/h

Dust collection capacity: 15kg/h

Resistance loss: about 500PA
