PIL SERIES

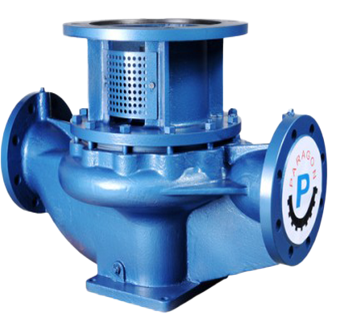

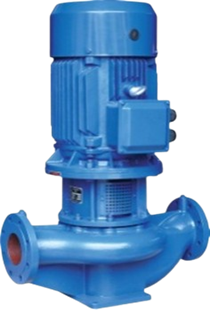

Type: Single Stage, Close Coupled In-Line Centrifugal Pump.

●       Size: 36

●       Max Capacity: 450 M3/H

●       Max Head: 150M

Technical Data

●       Design: DIN 24255.

●       Operating Pressure: 10 Bar, 16 Bar optional.

●       Hydrostatic Test Pressure: 16 Bar, 20 Bar optional.

●       Operating Temperature: Ambient.

●       Operating Speed:  50Hz, 1450 & 2900 rpm and 60 Hz, 1750 & 3500 rpm.
